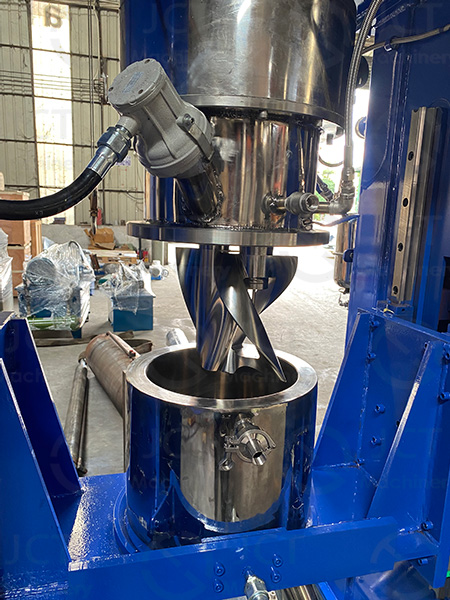

Vertical Kneader For Gunpowder Production | JCT Machinery

Gunpowder (such as black powder, smokeless powder and composite propellant) is a high-risk explosive during the production process, and places extremely high demands on the equipment's explosion-proof, anti-static, and temperature control.

Vertical kneader is used in some military or civilian special materials fields due to their good mixing uniformity, low speed and high torque, and closed safety structure:

• Black powder premix mixing
• Composite solid propellant raw material kneading
• Explosive clay, explosive paste formulation preparation

Necessary conditions for using vertical kneader to produce gunpowder:

1. Explosion-proof structural design

The motor, control cabinet, and junction box must be explosion-proof.

2. Static discharge control

Vertical kneader is grounded, and conductive copper strips are installed between bearings and blades to avoid accumulation of electricity.

3. Temperature control

Strict low-temperature stirring to prevent local temperature rise from igniting.

4. Spark-free parts

Vertical kneader structure must be free of iron touching iron (avoid steel-to-steel friction and ignition).

5. Slow speed and high torque operation

The speed is generally less than 30rpm to prevent violent stirring from causing spontaneous combustion.

6. Sealing and dust prevention

Prevent dust leakage from causing explosive mixtures in the air.

What JCT can do:

1. Customize vertical kneader according to customer production capacity, formula characteristics, and site size.
2. Provide special designs such as pharmaceutical grade / food grade / explosion-proof / nitrogen protection / anti-sticking treatment.
3. Chinese and English interface / different voltage standards (220V~480V, 50/60Hz) overseas adaptation.
4. Fast delivery of conventional equipment (in stock), strict deadlines for customized machines.
5. Support dometic / overseas remote or on-site installation and commissioning.
6. Provide operation manual + operation training + maintenance video.
7. Vertical kneader has 1 year warranty, and lifetime maintenance.
8. Quick response after-sales team, support remote video guidance / on-site visits,
9. Provide a list of commonly used wearing parts, establish a spare parts service center or overseas agent support.
