Solid Propellant Vertical Kneader

Solid propellants are composed of a mixture of high-viscosity polymer binders (such as HTPB) and a large quantity of solid high-energy particles (such as ammonium perchlorate and aluminum powder). As these materials are highly sensitive energetic substances, traditional horizontal kneaders—which feature shaft seals located beneath the material zone—pose a risk of fire or explosion caused by frictional heat or static electricity.

Solid propellant vertical kneaders effectively resolve this issue; through a "suspended mixing shaft design" and a "bottom-seal-free structure," they elevate safety standards to a new level.

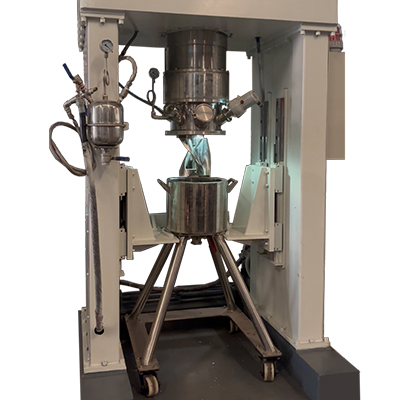

solid propellant vertical kneader

Solid Propellant Vertical Kneader Parameters

Model	*Dimension HLW /mm* Weight	*Barrel Inner Size DH /mm**	Full Volume /L	Useful Volume /L	Min Volume /L	Power /KW	Pericentric Blade Speed /rpm	Telecentric Blade Speed /rpm	Revolution Speed /rpm	Clearance /MM	Vacuum Abs Pressure /kPa
VK-10	260016001400 2.5t	300*240	16.9	12	2	5.5	0~25	0~50	0~6	3±0.5	<1.5
VK-100	320020001600 6t	600*480	135	100	15	22	0~25	0~50	0~6	4.5±0.5	<1.5
VK-500	420025002000 12t	900*800	500	350	60	37	0~22.5	0~45	0~6	5.5±0.5	<1.5
VK-1000	510030002500 24t	1200*1100	1000	600	120	45	0~22.5	0~45	0~6	6±1	<1.5
VK-2000	600042003000 32t	1400*1300	2000	1200	200	55	0~20	0~40	0~6	7±1	<1.5
VK-3000	650046003400 35t	1600*1500	3000	1800	300	75	0~20	0~40	0~5	8±1	<1.5
VK-5000	730050003600 40t	1900*1800	5000	3000	500	110	0~18	0~36	0~5	9±1	<1.5

To meet the high standards for safety, stability, and quality in the pyrotechnic composition manufacturing industry, JCT solid propellant vertical kneader incorporates multiple advanced design concepts and comprehensive safety measures:

1. Explosion-proof Rating

Ex d IIB T4 or the highest grade Ex d IIC T4; full-system explosion protection.

2. Sealing Structure

Magnetic seal or highly airtight multi-component seal; exceptional airtightness.

3. Control Method

Remote, isolated PLC centralized control; fully automated digital operation from an explosion-proof control room.

4. Discharge Method

Hydraulic lift-and-lower bottom discharge, or lateral transfer of the entire vessel to the casting station.

5. Material Requirements

Product-contact surfaces made of 316L stainless steel with mirror finish (high-precision electrochemical polishing).

finished solid rocket motor composite propellant manufactured by JCT vertical kneader

Technical consultation

Tel: +86-181 3837 3963 (Whatsapp, Wechat)

Email: [email protected]

Applications of Vertical Kneader

Composite propellants for solid rocket motors

High-energy explosives and gun propellants

Pyrotechnic compositions and decoy flare materials

Carbon fiber/glass fiber reinforced prepregs

Aerospace-grade sealants

High thermal conductivity interface materials

Epoxy molding compounds for semiconductor packaging

Ceramic injection molding (CIM) feedstock

Metal injection molding (MIM) feedstock

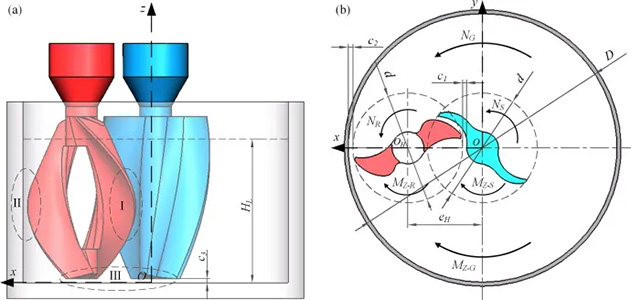

vertical kneader working principle

All drive and moving components—such as the mixing shaft, gearbox, bearings, and seals—are mounted at the top of the vertical kneader mixing vessel (above the material). This completely eliminates the risk of material leaking downward to contaminate bearings, or of deflagration caused by intense frictional heat resulting from material being forced into the shaft seal.
