New Design Triple Shaft Mixer | JCT Machinery

In modern adhesive and resin production processes, temperature control directly affects product quality and stability. Especially in the dispersion of high-viscosity, highly reactive materials, maintaining uniform heat transfer during mixing has become a critical issue for many companies.

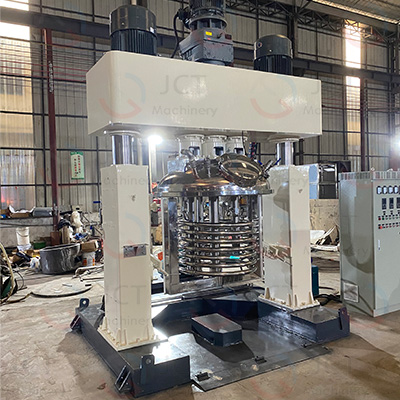

To address this, the coiled triple shaft mixer has emerged— it not only improves dispersion efficiency structurally but also achieves precise and controllable heating and cooling through a coiled temperature control system, providing a reliable guarantee for the production of high-quality materials.

Temperature Control Functions

1. Heating function

When materials have high viscosity and require heating to flow during stirring and dispersion, heat transfer oil or steam can be circulated into the coil to heat the inner wall of the cylinder, ensuring uniform heating of the material and improving dispersion efficiency.

2. Cooling function

During high-shear dispersion, material temperature rises significantly due to friction. Excessive temperature can lead to premature reaction or resin discoloration. Circulating cooling water into the coil removes excess heat, preventing material deterioration or runaway reaction.

Energy Saving and Efficiency Improvement

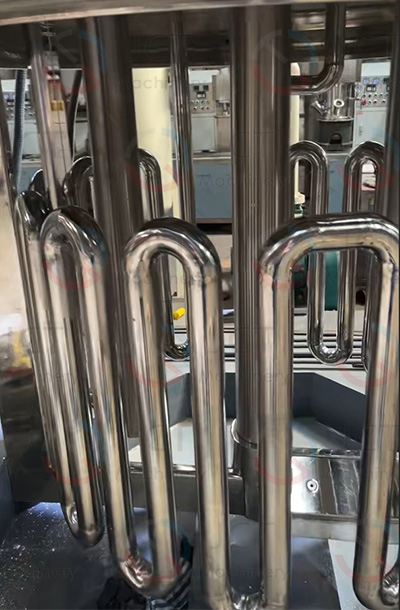

• More precise local temperature control: The coil surrounds the blades directly, allowing for rapid response to material temperature changes, making it more sensitive to heating and cooling than ordinary jacketed systems.
• High energy utilization: Shorter heat conduction path, resulting in approximately 30% higher heat transfer efficiency than single-layer jackets.
• Better mixing uniformity: Uniform temperature prevents localized condensation or scorching of materials.

If you are interested in these special triple shaft mixer, feel free to contact us: +86-181 3837 3963 (Whatsapp, Wechat) or [email protected].
