Introduction To Triple Shaft Mixer | JCT Machinery

What is triple shaft mixer?

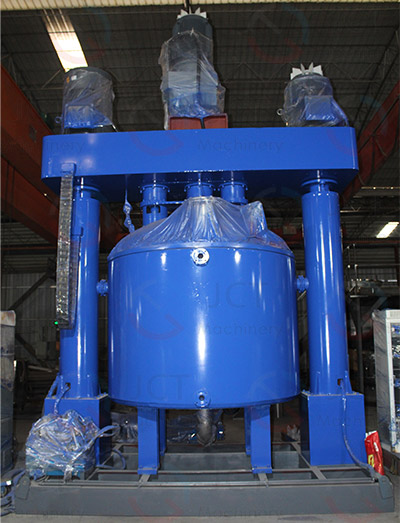

Triple shaft mixer is a high-efficiency mixing device that integrates dispersion, stirring, and emulsification. It is specifically designed for high-viscosity materials and multiphase systems.

Main Structure of Triple Shaft Mixer

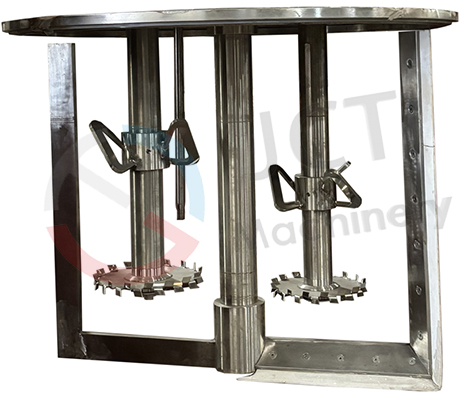

• Trixial Mixing System: dispersing discs (for shearing and dispersing) + "山"-shaped blade (for propelling the flow of highly viscous materials) + butterfly blades and scrapers (for assisting in scraping and homogenization).
• Hydraulic Lifting System: Facilitates  vertical movement and cleaning operations.
• Vacuum System (optional): Used for degassing and de-foaming to improve product purity.

• Heating/Cooling System: Jacketed temperature control ensures stable reaction.
• Variable Frequency Control System: Allows for independent control of the three shaft speeds, achieving precise process matching.

Advantages of Triple Shaft Mixer

1. Specifically for high-viscosity systems: Suitable for materials with viscosities up to 1,000,000 cps.

2. Uniform dispersion, no dead zones: Multi-layer stirring structure achieves three-dimensional mixing.
3. Highly efficient degassing: Can be equipped with a vacuum system to eliminate bubbles and volatiles.
4. Versatile process adaptability: Combines mixing, dispersion, dissolving and emulsifying functions.
5. Intelligent control: Can be configured with PLC + touch screen for automated operation.

Triple shaft mixer is commonly used as main equipment in the following production line:

• Silicone sealant production line
• Liquid silicone rubber production line
• Acrylic construction adhesive production line
• Road adhesive production line
• High-temperature resistant sealant production line

Why choose JCT?

• 20+ years of experience in manufacturing high-viscosity mixing equipment.
• Own factory, supporting non-standard customization, flexible production scheduling.
• Equipment exported to all continents, stable operation.
• Providing one-stop service including equipment, technology, and complete production line solutions.
