What Is The Difference Between Single-component And Two-component Silicone Sealant Fiiling Machines?

In the automated production and packaging of silicone sealants, the choice of filling equipment directly determines the quality of the finished product and production efficiency. Due to differences in curing mechanisms and material properties, the filling equipment required for single-component and two-component silicone sealants differs fundamentally in terms of structural design, mixing ratio control, and cleaning and maintenance.

Comparison of core working principles

Single-component silicone sealant filling machine: This equipment is designed for single-component sealants supplied as finished products (such as architectural glazing sealants and weatherproofing sealants). Its core functions are isolating the material from air and moisture, precisely removing air bubbles, and performing metered filling and sealing. The process involves single-line extrusion and metering to fill the sealant into rigid cartridges or soft packs, followed by the insertion of a rear plug or the application of a crimp seal.

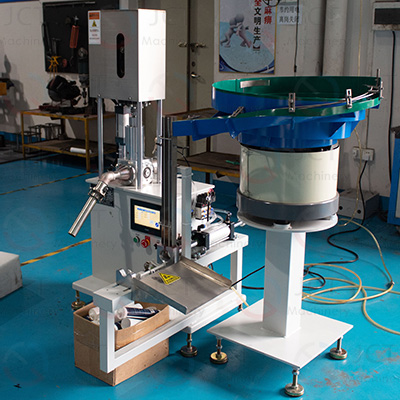

filling machine for single-component silicone sealant cartridges

Two-component silicone sealant filling machine: This equipment is primarily designed for sealants that require in-situ reaction and curing (such as structural sealants for insulating glass adn electronic potting compounds). Its core functions involve high-precision synchronous metering, uniform mixing, and anti-curing control. The system utilizes two independent units to separately deliver Component A (base) and Component B (catalyst/curing agent) at a specific ratio, ensuring uniform dispersion through high-shear mixing at the dispensing head prior to application.

Differences in key technical features

	Single-component Silicone Sealant Filling Machine	Two-component Silicone Sealant Filling Machine
Metering System	Single-line metering: Quantitative injection driven by a dedicated servo motor or hydraulic cylinder	Double-channel synchronous metering: Utilizes double servo-driven high-pressure plunger pumps to control the A/B component ratio in real time
Hybrid Structure	No mixing required	Equipped with a mixing system: Uses static mixing tubes or dynamic mixing heads to ensure thorough mixing without dead zones
Anti-curing Design	Fully sealed system isolates air and moisture, preventing skin formation within the lines	Features scheduled automatic dispensing and solvent/pressure flushing functions to prevent material curing and clogging in the mixing section
Control System	Key focus on controlling filling speed, vacuum extraction, and the flatness of the rear plug	Key control features include flow ratio monitoring, online closed-loop adjustment, and pot life alerts
