Uncover The Advantages Of Ribbon Mixer In Chemical Production

Ribbon mixer is a highly efficient and uniform mixer for mixing powders, granules, and pastes. It is widely used in the chemical, food, pharmaceutical, building materials, adhesives, coatings, and plastic additive industries. Known for its simple structure, high mixing uniformity, easy operation, and low maintenance costs, it is one of the most commonly used mixing equipment in industrial production.

Working Principle of Ribbon Mixer

Ribbon mixer consists of a U-shaped cylinder, a double-layered ribbon agitator, a main shaft, a drive unit, a discharge port, and a sealing system.

When ribbon mixer is started, the outer ribbon pushes the material from both ends toward the center, while the inner ribbon pushes the material from the center toward both ends, creating a bidirectional flow that rapidly and uniformly mixes the materials.

This convection shear mixing principle achieves uniform mixing within minutes and is suitable for mixing low-viscosity powders, granules, or small amounts of liquids.

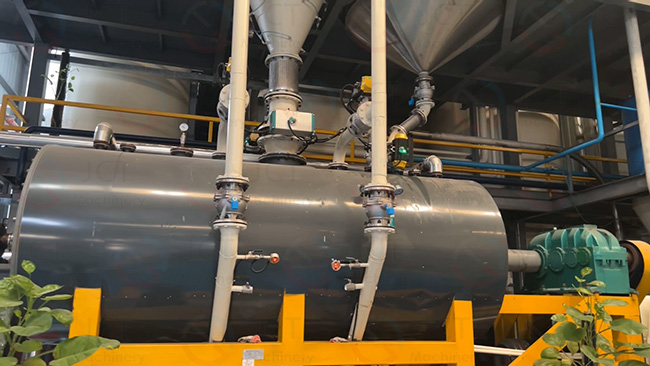

horizontal ribbon mixer

Ribbon Mixer Structure

Component	Function
U-shaped cylinder	Contains and supports mixed materials, typically made of stainless steel or carbon steel.
Double-layer ribbon agitator	Inner and outer spiral ribbons rotate in opposite directions, pushing the material to form a three-dimensional mixing flow field.
Main shaft and bearing housing	Provides rotational powerful and maintains balanced operation.
Drive unit (motor+reducer)	Controls stirring speed and torque output to ensure uniform mixing.
Discharge valve	Fast material discharge, typically controlled pneumatically or manually.
Sealing device	Prevents dust leakage and material contamination, ensuring safe operation.

Applicable Materials and Industries for Ribbon Mixer

Chemical Industry: PVC powder, additives, laundry detergent, dry powder coatings, hot melt adhesive premixes.
Food Industry: Flour, seasonings, milk powder, coffee powder.
Building Materials Industry: Putty powder, dry mortar, gypsum powder.
Pharmaceutical Industry: Granules, pharmaceutical powders, additives.
Adhesives Industry: Hot melt adhesive granules, sealing adhesive ingredients, dry mixes.

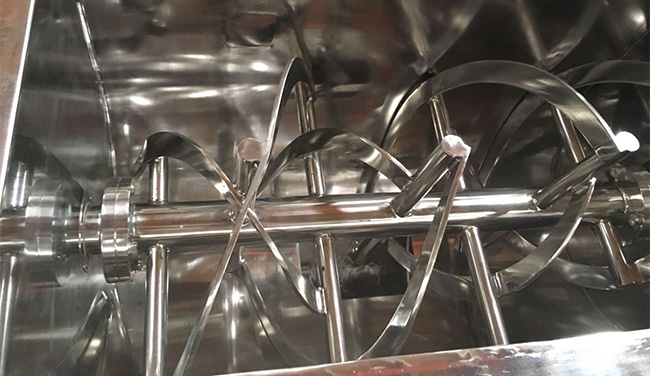

ribbon mixer agitator

Advantages of Ribbon Mixer

High mixing efficiency: Achieve over 95% mixing uniformity in 3-10 minutes.
Customizable structure: Customize the ribbon shape, speed, and discharge method based on material characteristics.
Automated control: Optional PLC system with timing, frequency conversion, temperature control, and weighing functions.
Easy-to-clean design: Polished inner wall ensures clean, residue-free discharge.
Multiple heating options: Jacketed design can be added for heating, cooling, or drying materials.

Founded in 2006, JCT has exported equipment to numerous countries, including India, Russia, Algeria, Egypt, Turkey, Iran, and Pakistan.

We provide installation and commissioning, operator training, and lifetime technical support. We not only sell equipment, but also provide complete line solutions.
