The Secret | How to choose stainless steel reactor

Author: source: Datetime: 2018-05-10 15:06:44

Greeting ! Today I will share the relevant characteristics and technical parameters of the reactor, and I hope to help you in how to purchase the reaction kettle.

 JCT Reactor

Reactor equipment characteristics

1, Material: Carbon manganese steel, stainless steel, zirconium, lined Teflon, lined PTFE, nickel-based alloy and other composite materials.

2, Product structure: Jacket, outer half pipe, inner coil.

3, Heating mode: Electric heating, steam heating, heat conduction oil heating, hot water heating and so on.

4, Sealed form: Packing seals, mechanical seals (mostly).

5, Stirring characteristics: Paddle-type stirring, anchor-type stirring, screw mixing, frame-type stirring, oblique propeller type, propulsion, with emulsifying first class.

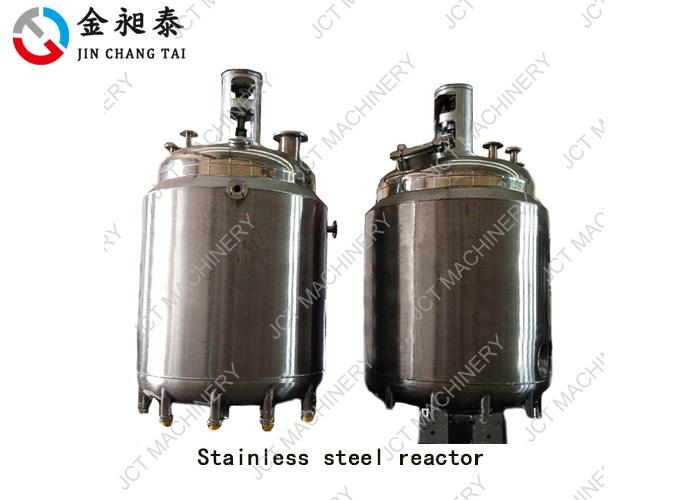

 Stainless steel reactor

Reactor technical parameters.

1.Design capacity: 50-40000L (volume can be designed according to requirements)

2.Reaction temperature: Room temperature -300°C

3.Reaction pressure: -0.1-0.6Mpa

4.Equipment material: SUS304 stainless steel, SUS321 stainless steel, SUS316L stainless steel or Q235-B carbon steel

5.Mixing modes: Paddle type, anchor type, frame type, ribbon type, turbine type, dispersive disc type, combination type, etc.

6.Heating method: Electric heating, steam heating, water bath heating

7.Heat transfer medium: Heat transfer oil, steam, hot water, electric heating

8.Heat transfer structure: Jacket type, outer half tube type, inner coil type

If you are the interested in reactor, free contact us as soon as possible.We have a professional team to provide you with professional services.
