Thermal Grease Vertical Kneader

Thermal grease is widely used in thermal management applications such as CPUs, GPUs, LED lighting, power modules, new energy vehicles, power electronics, and 5G communication equipment.

Thermal Grease Vertical Kneader Equipment Parameters

Model	*Dimension HLW /mm* Weight	*Barrel Inner Size DH /mm**	Full Volume /L	Useful Volume /L	Min Volume /L	Power /KW	Pericentric Blade Speed /rpm	Telecentric Blade Speed /rpm	Revolution Speed /rpm	Clearance /MM	Vacuum Abs Pressure /kPa
VK-10	260016001400 2.5t	300*240	16.9	12	2	5.5	0~25	0~50	0~6	3±0.5	<1.5
VK-100	320020001600 6t	600*480	135	100	15	22	0~25	0~50	0~6	4.5±0.5	<1.5
VK-500	420025002000 12t	900*800	500	350	60	37	0~22.5	0~45	0~6	5.5±0.5	<1.5
VK-1000	510030002500 24t	1200*1100	1000	600	120	45	0~22.5	0~45	0~6	6±1	<1.5
VK-2000	600042003000 32t	1400*1300	2000	1200	200	55	0~20	0~40	0~6	7±1	<1.5
VK-3000	650046003400 35t	1600*1500	3000	1800	300	75	0~20	0~40	0~5	8±1	<1.5
VK-5000	730050003600 40t	1900*1800	5000	3000	500	110	0~18	0~36	0~5	9±1	<1.5

**Designed according to actual needs.

general assembly drawing of thermal grease vertical kneader structure

Why are vertical kneaders recommended for the production of thermal grease?

1. Strong mixing capability for high-viscosity materials

Utilizing an intermeshing twin-shaft (or triple-shaft) mixing structure, the system exerts intense shear, compression, and folding forces on highly filled, high-viscosity materials, easily handling:

High-viscosity materials (50,000–2,000,000 cP)
Highly filled thermal conductive silicone grease
Thermal conductive gels
Thermal conductive potting compounds
High thermal conductivity silicone rubber

2. Vacuum degassing to enhance thermal conductivity

Air reduces the thermal conductivity of thermal grease, making degassing crucial.

Thermal grease vertical kneader is equipped with a vacuum system that allows for continuous vacuuming during the mixing process:

Removes air
Eliminates micro-bubbles
Increases product density
Enhances thermal conductivity
Improves long-term product stability

3. Contamination-free Design

One of the key advantages of the vertical structure is: the spindle seal does not come into direct contact with the material.

Compared to sigma mixer, this effectively prevents:

Product contamination caused by seal wear
Frictional heat generation
Contamination by lubricating oil

It is particularly suitable for the production of high-quality, electronic-grade thermal grease.

We offer not only vertical kneaders but also complete production solutions for thermal grease.

Please send us your production requirements, and we will provide professional recommendations and a quotation within 8 hours.

Tel: +86-181 3837 3963 (Whatsapp, Wechat)

Email: [email protected]

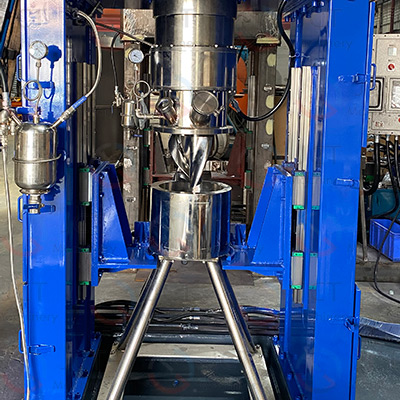

close-up of the internal double-blade structure of vertical kneader

Vertical kneaders can produce a wide range of high-viscosity thermal materials:

Thermal grease
CPU thermal paste
GPU thermal paste
LED thermal grease
Thermal materials for new energy vehicles
Thermal gel
Thermal silicone
Thermal potting compound
Thermal Interface Materials (TIM)
Highly filled thermal grease

Structural Features of Thermal Grease Vertical Kneader

Vertical design minimizes mixing dead zones
Main shaft seal is isolated from the material, reducing contamination risk
Superior vacuum degassing performance; suitable for electronic-grade materials
Bottom hydraulic discharge ensures minimal residue and easier cleaning
Modular design allows for customization of mixing blades, temperature control systems, and automation configurations based on specific process requirements
