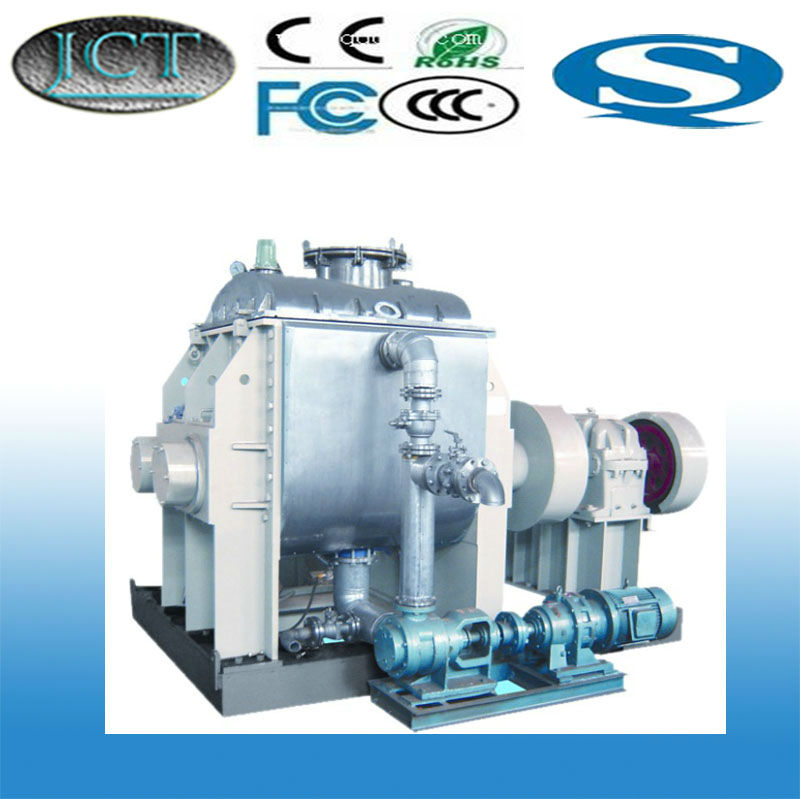

high quality and multi functional kneader making machine used for scrap tyre rubber NHZ-500L

Kneader (29).jpg

1. Company profile

Foshan Nanhai JCT machine & equipment Co., Ltd. is the leading company which speciallize in manufacturing the mixers & reactors.The company is loacted in the center of Nanhai District, Foshan city which is only 1 hour driving to the Guangzhou Baiyun airport.Founded in 2005,the company has a 4,000 sqm factory & an independent office building. Besides,the engineer devolted over 20 years designing & manufacturing the machines.

2. Introduction

1). Kneading machine is an ideal equipment, design for mixing, kneading, crushing, dispersing high viscosity plastic materials, and has good performance in uniform mixing, no dead ends and high efficiency kneading. It is widely used in many industries: high viscosity sealant, silicone rubber, CMC, adhesive, also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics ect.

2). Kneading mechanism is classified into three types: vacuum, pressure and standard atmosphere.Heating/cooling system consists of heating/cooling jacket and outer coil, works by steam, thermal oil and hot water, water cooling, with hydraulic cylinder turn and cover.

3). Discharging can be hydraulic cylinders dumping, discharge valve or screw extrusion. A variety of equipments can be installed on for safety, measurement, control records, etc. Mixing cylinder and the material contact parts are made of stainless steel to ensure the purity of product. Shaft seal is vacuous structure.

3.Characters:

1) Available models normal pressure, high pressure and vacuum.

2) Temperature adjustment: heated by oil, steam or electricity, cooled by water.

3) Discharge method: tilt dump, bottom dump and screw discharge.

4) The seal of shaft agitator is adopted with unique balance construction of vacuum box, Which owns patent.

5) The cover is controlled by hydraulic system.

4.Technical parameters:

Model	Chamber Volum(L)		Drive motor power (KW)	Mixing Speed (rpm)	Discharge mode			Heating
Model	Full volume	Feeding amount	Drive motor power (KW)	Paddle fast / slow paddle	Optional parameters			Optional parameters
NHZ-5	5	3	2.2-4	75/50	Manual / Hydraulic tilting			Running Hot oil	Electrical heating	Pressure Steam
NHZ-20	20	12	3-5.5	63/42
NHZ-50	50	30	4-7.5	63/42
NHZ-100	100	60	5.5-7.5	43/29
NHZ-200	200	120	7.5-15	43/29	Hydraulic tilting	The bottom pumping	Screw extruding
NHZ-300	300	180	11-18.5	43/29
NHZ-500	500	300	18.5-30	43/29
NHZ-1000	1000	600	22-55	32/22
NHZ-1500	1500	900	30-90	32/22
NHZ-2000	2000	1200	45-110	32/22
NHZ-3000	3000	1800	55-130	33/22
Remarks: 1,Temperature range: 0-300°, 2, Pressure range:-0.1-0.6MPa, 3,Frequency inverter control the main motor speed,if necessory.

5. Products pictures for circle cosmetic vacuum emulsifying

Apply to: high viscosity sealant base kneading, rubber base kneading, DOW Corning, Silicone sealant, adhesive,ink, dope, pigment, dye, carbon, CMC, cosmetic, foodstuff, battery, medicine, plastic and other viscosity fluid etc.
