strong dispersion machine | High speed dispersion mixer

disperser mixer

Equipment introduction:

1） Commercial planetary mixer machine is a kind of highly efficient and versatile mixer with mixing,

dispersing, cutting and mixing function; high speed dispersion

2）There are three different types of Commercial planetary mixer machine in the blender, One of the groups of agitator rotates

around the central axis of the kettle body, The other two groups of mixing device withdifferent speed rotation speed, To make the material in the kettle for complex movement，disperser mixer mixer

The material is strongly cut and mixed. In the equipment, “山”shape blade around the axis

of the kettle body rotation, on the cylinder wall and bottom material scraped off and

Involved in mixing, mixing effect is more ideal. disperser mixer

3）in the form of the agitator of commercial planetary mixer machine, according to the material requirements can be designed as a multi

- layer blades, frame type, butterfly type, leaf type, etc.. disperser mixer

4）The sealing performance of the equipment is good, it can be pumped vacuum, the sealing

performance of the equipment is good, can be pumped vacuum, can exhaust and eliminate

the bubble inside the material . disperser mixer

5）The hydraulic lifting device of cylinder, the cylinder can move freely, the operation is very

convenient. disperser mixer

disperser mixer

disperser mixer high speed dispersion

mixer

high speed dispersion

disperser mixer

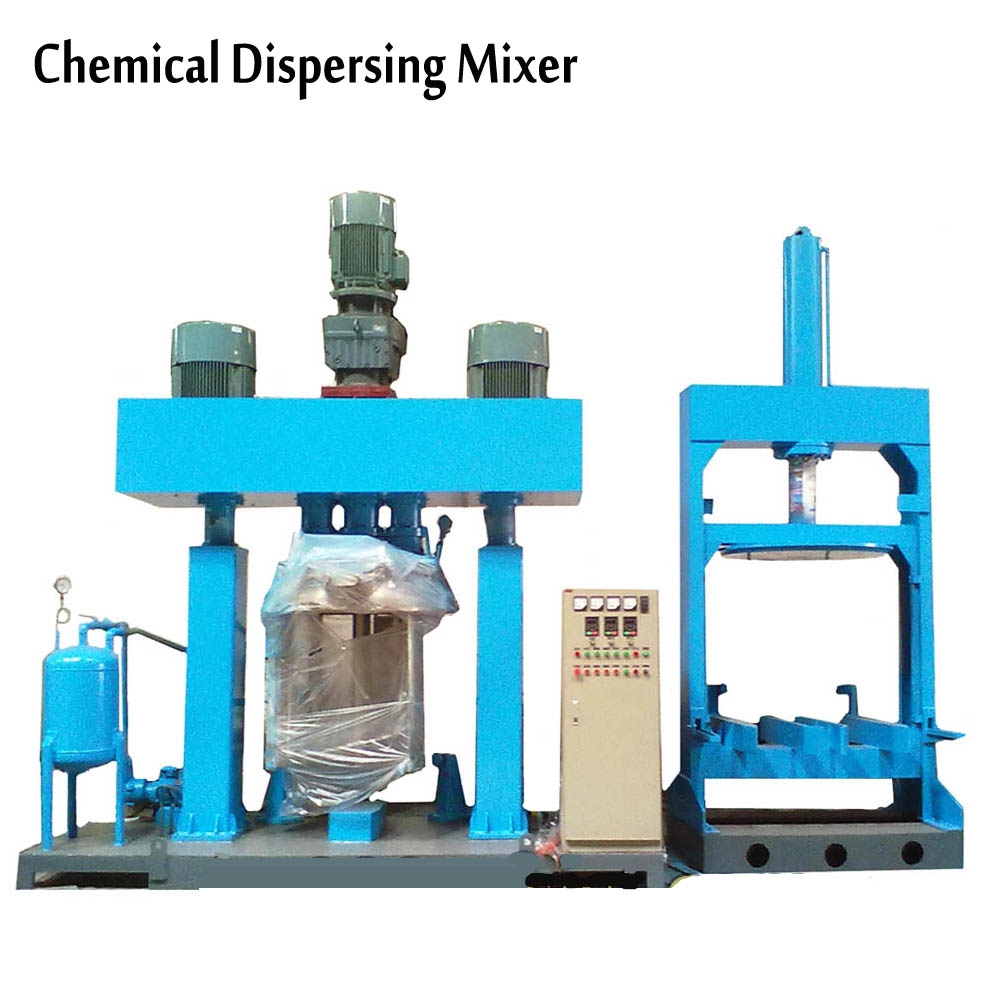

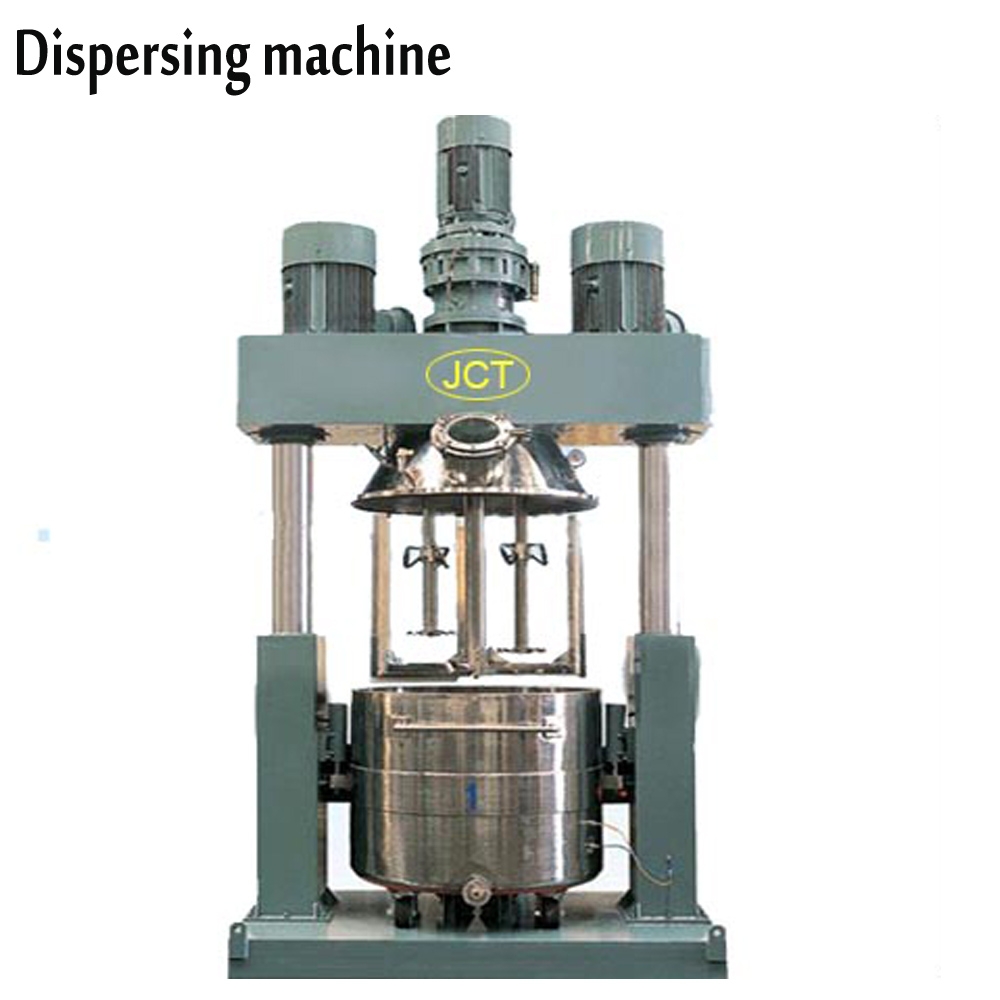

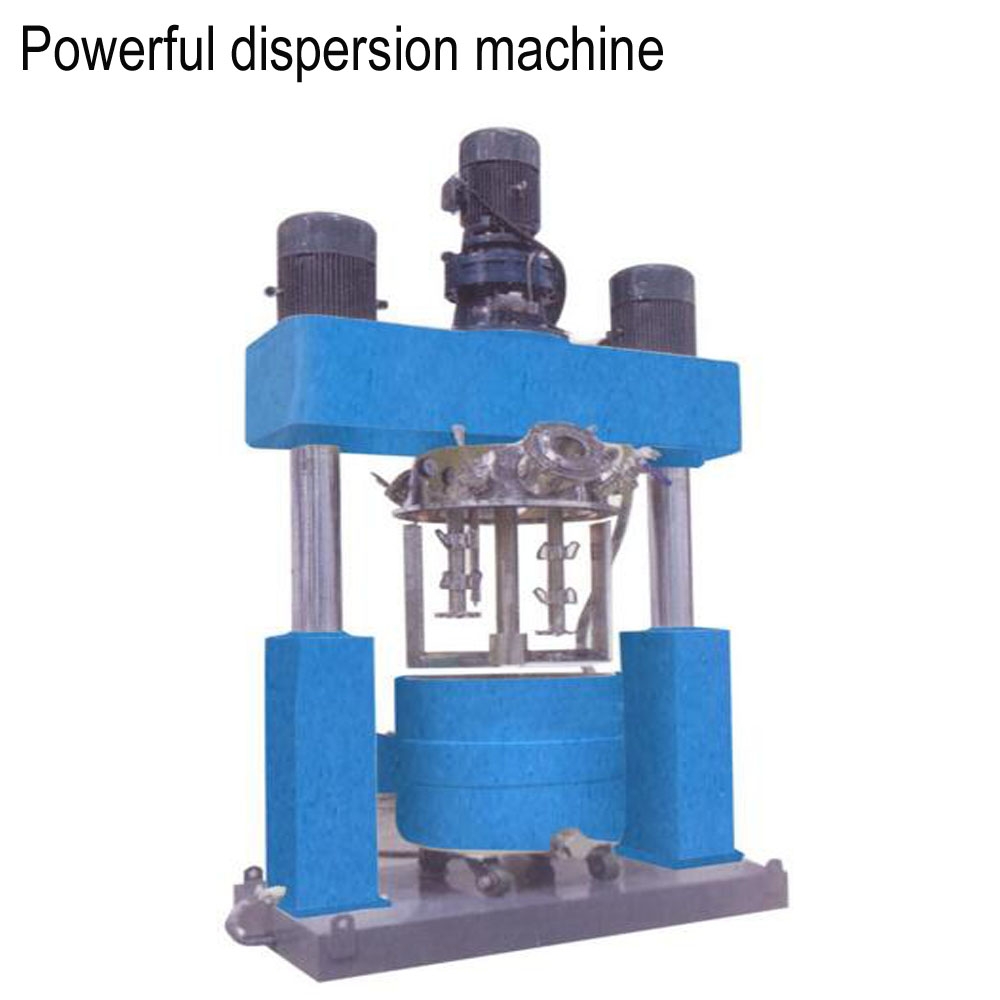

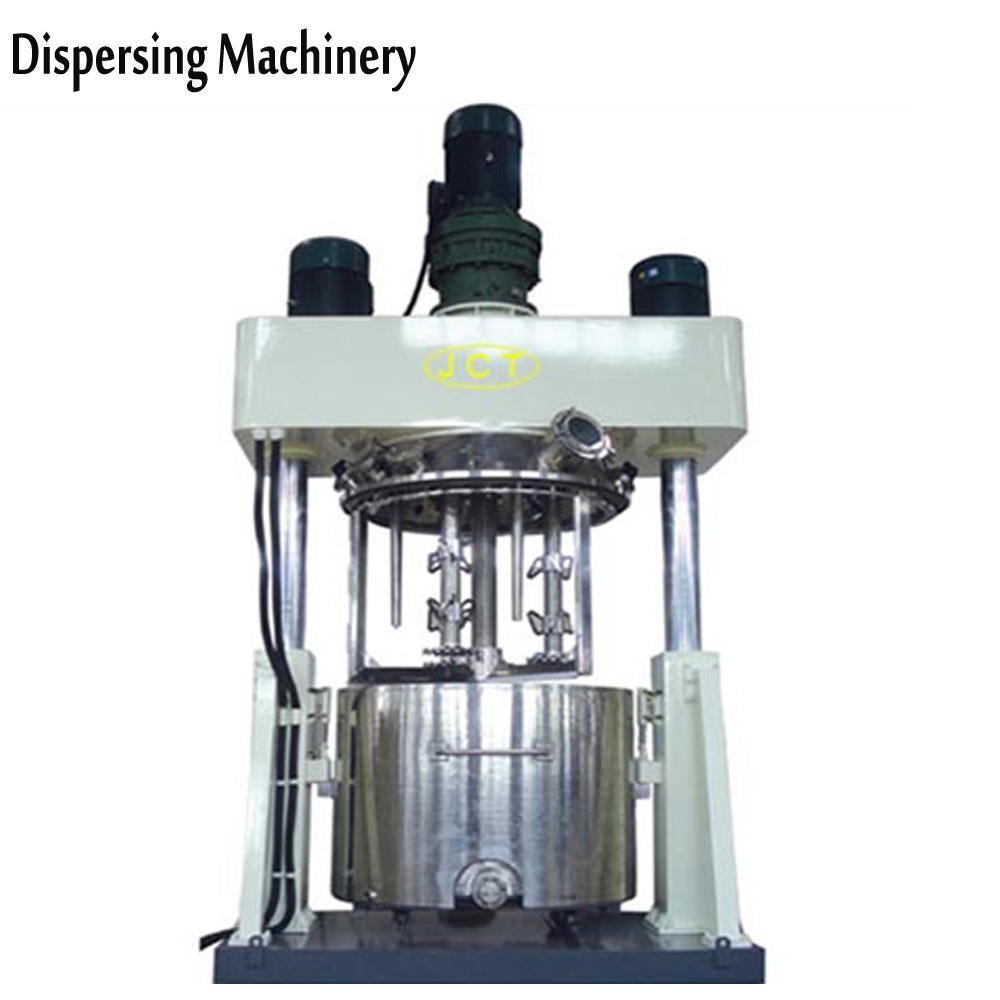

High speed dispersion mixer is efficient dispersion machine, which widely used in silicone sealant, ink, paint,adhesives, chemical products, cosmetics, batterials, food, pharmaceutical and pther industries.

high speed dispersion

disperser mixer

Model	Cylindervolume（L）		Motorpower（KW）		Stirring speed（rpm）		Remarks
Model	total volume	Feeding quantity	Low speed mixing	High speed dispersion	Low speed mixing	High speed dispersion	Remarks
QF-5	5	4	0.75	0.75*2	23	0-1000	Table data for reference, actual data according to the specific process requirements, material viscosity, etc.
QF-20	20	16	1.1	1.1*2	23	0-1000
QF-50	50	40	1.5	2.2*2	23	0-1000
QF-100	100	80	3	5.5*2	23	0-1000
QF-200	200	160	4	7.5*2	23	0-1000
QF-300	300	240	5.5	15*2	23	0-1000
QF-500	500	400	7.5	22*2	23	0-1000
QF-1000	1000	800	18.5	30*2	0-20	0-1000
QF-2000	2000	1600	30	37*2	0-20	0-1000
QF-3000	3000	2400	30	45*2	0-20	0-1000
QF-4000	4000	3200	37	55*2	0-20	0-1000
QF-5000	5000	4000	45	55*2	0-20	0-1000
1、Lift mode: hydraulic lift
2、The mixing tank with a clip, can be heated and cooled according to the need;
3、Pressure range: -0.1~0.3MPa;
4、Speed control mode: frequency converter.
