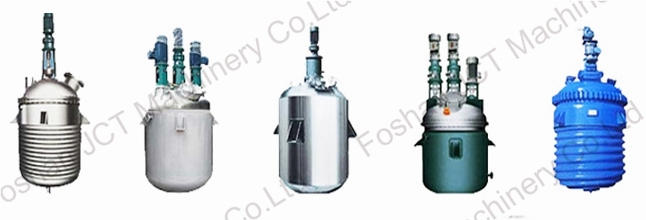

Stainless Steel resin mixer

A. Equipment introduction:

1）Stainless Steel Chemical Reactor is the main chemical reaction of the typical production equipment, which is

widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical

production.

2） By stiring, mixing, heating, cooling, pumping vacuum, so that the material to react,

polymerization.

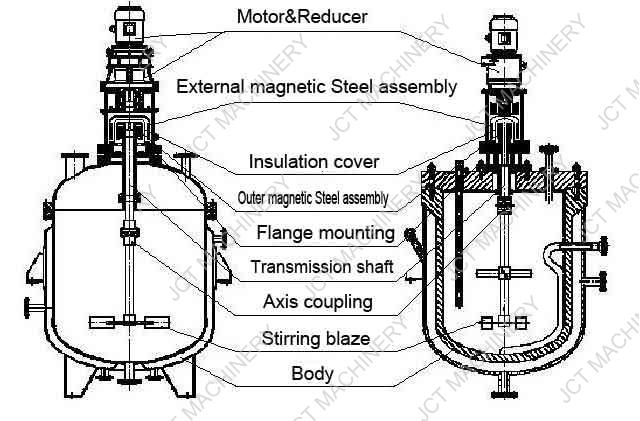

3）Reaction kettle is generally composed of a kettle body,a driving device, a stirring device,

a heating device, a cooling device, and a sealing device.

4）The corresponding auxiliary equipment: Raw material storage tank，High metering tank,

distillation column, condenser, water separator, collection tank, filter, filling machine and

so on.

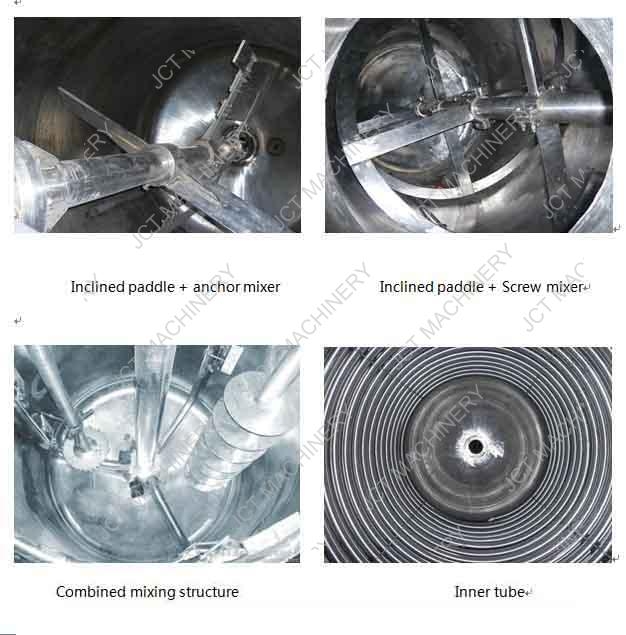

B.The stirrer Blazes of stainless steel resin mixer:

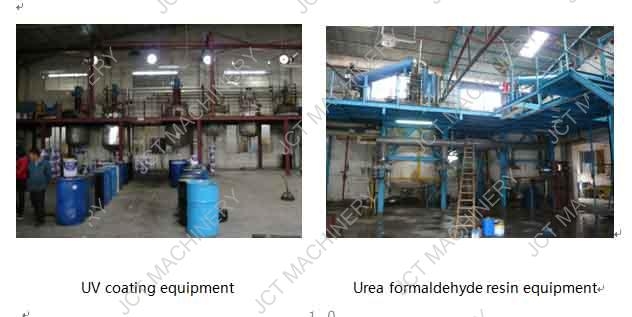

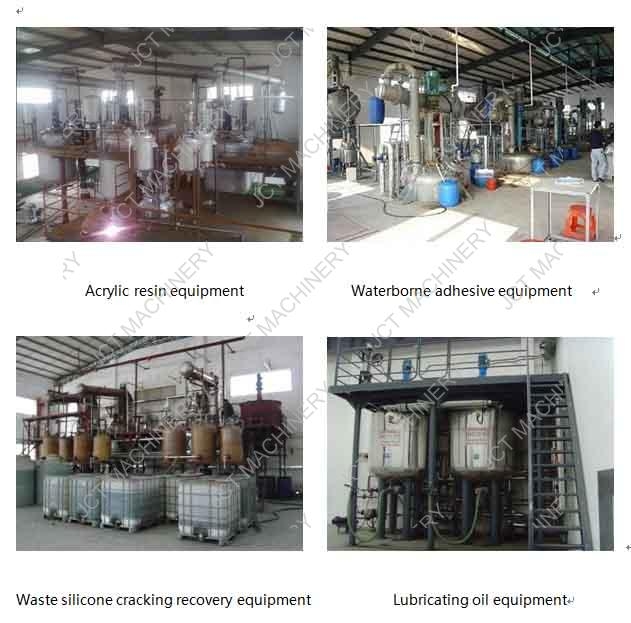

C. Sets of Equipment

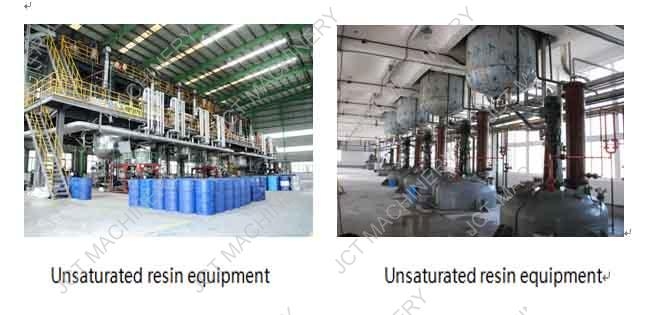

1. Unsaturated polyester resin, alkyd, polyester powder coating, curing agent and other

complete sets of production equipment

2.Complete sets of production equipment, such as acrylic resin, phenolic resin, epoxy resin,

3.Amino resin, polyurethane resin, PVC resin complete set of production equipment

4.Complete sets of production equipment, such as polyacrylic emulsion , white latex,

waterborne polyurethane, printing and dyeing auxiliaries

5.Silicone resin, silicone oil and other complete sets of production equipment

6.Complete equipment for production of hot melt adhesive

7. Solvent type PU rubber, chloroprene rubber, adhesive, PVC adhesive, urea formaldehyde

glue, such as complete sets of production equipment

8.Waste silica gel cracking, distillation, recovery of complete sets of production equipment

9. Paint, ink dispersion, mixing, mixing equipment

Q:How do I pay for my purchase order?

A: T/T or L/C.

Q:What’s the delivery time?

A:It will take about 30 days to finish an order,but the exact time is according to actual situation.

Q:How about the warranty control?
A:One year warranty for the equipment since sold.If quality problem occurs,please feel free to contact us.

Pre-sale service:

♦ We can supply you all the details you need.
♦ We can design the drawings according to your requirements.
♦ We can also customize the products according the requirement.

After-sale service:

♦ We provide long-term after-sale service.
♦We can help you to install in your factory If necessary,the technicians can go to debug the machine,but the air ticket,visa,accommodation and labor cost provided by your party.
♦ You can consult any relevant questions by phone,E-mail and communicate online.

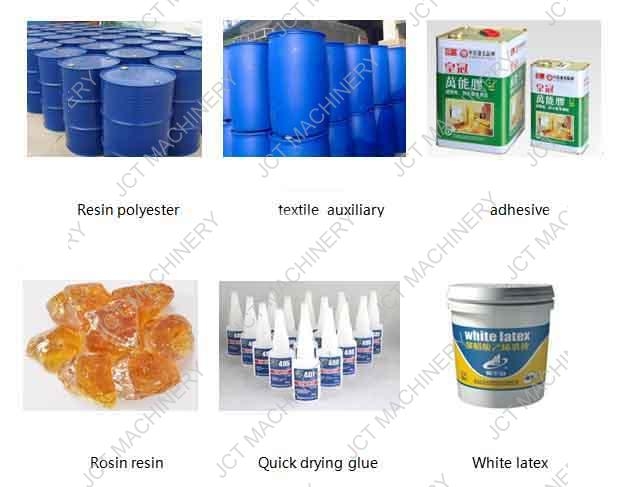

The resin mixer is widely used in resin, adhesives, inks, pesticides, chemical and other industries.

1）Equipment volume: 20-50000L (volume in accordance with the requirements of the design.)

2 ) Reaction temperature : -20℃~300℃。Stainless Steel Chemical Reactor Stainless Steel Chemical Reactor

3 ) Reaction pressure -0.1~1.6Mpa.

4 ) Equipment Material : SS304 , SS321 , SS316L stainless steel ; Q235-B carbon steel.

5 ) Mixing type: blade type, anchor type, frame type, screw belt type, turbine type,

dispersing disc type, combination type and so on.

6 ) Heating method: the heat conduction oil circulation heating, Electric heating in jacket，

steam heating, hot water heating.

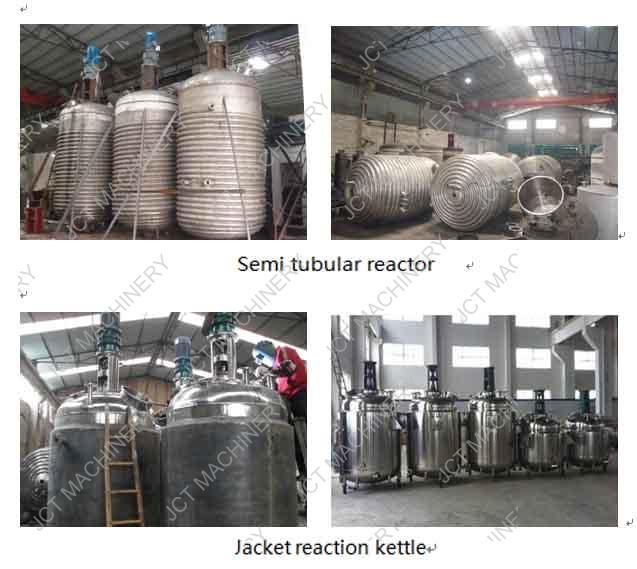

7) Transfer structure: the outer jacket, the outer half tube, inner tube
