Dispersing Mixing Machine for Silicone Rubber Products

Introduction:Dispersing mixing machine is one of the mixing machine for silicone rubber production. It is high efficiency and well mixing machine that manufacture in China.

Product Details

Application

Structural features

Technical Parameters

Equipment introduction:

1) Commercial planetary mixer machine is a kind of highly efficient and versatile mixer with mixing dispersing, cutting and mixing function.
2) There are three different types of planetary mixers in the blender. One of the groups of agitator rotates around the central axis of the kettle body. The other two groups of mixing device with different speed rotation speed. To make the material in the kettle for complex movement, the material is strongly cut and mixed. In the equipment, '山' shape blade around the axis of the kettle body rotation, on the cylinder wall and bottom material scraped off and involved in mixing, mixing effect is more ideal.
3) In the form of the agitator, according to the matterial requirements can be designed as a multi-layer blades, frame type, butterfly type,leaf type, etc.
4) The sealing performance of the equipment is good, it can be pumped vacuum, can exhaust and eliminate the bubble inside the material.
5) The hydraulic lifting device of cylinder, the cylinder can move freely, the operation is very convenient.

Dispersing Mixing Machine for Silicone Rubber Products detail of Dispersing Mixing Machine for Silicone Rubber Products sets of Dispersing Mixing Machine for Silicone Rubber Products

500L High Speed Dispersion machine is widely used in sealant, silicone rubber, adhesive, paste, cosmetics, paint, ink, cell paste, food, and other industries.

Dispersing Mixing Machine for Silicone Rubber Products application

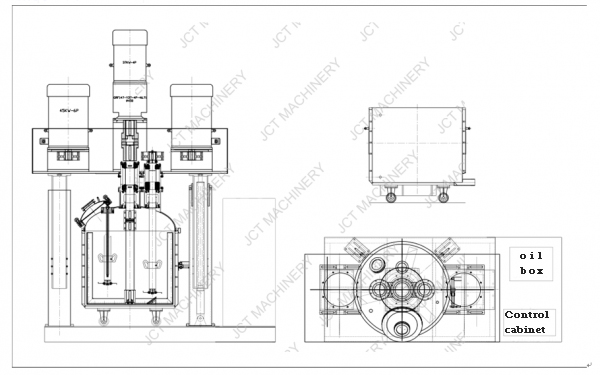

planetary mixer structure

Model	Cylindervolume（L）		Motorpower（KW）		Stirring speed（rpm）		Remarks
Model	total volume	Feeding quantity	Low speed mixing	High speed dispersion	Low speed mixing	High speed dispersion	Remarks
QF-5	5	4	0.75	0.75*2	23	0-1000	Table data for reference, actual data according to the specific process requirements, material viscosity, etc.
QF-20	20	16	1.1	1.1*2	23	0-1000
QF-50	50	40	1.5	2.2*2	23	0-1000
QF-100	100	80	3	5.5*2	23	0-1000
QF-200	200	160	4	7.5*2	23	0-1000
QF-300	300	240	5.5	15*2	23	0-1000
QF-500	500	400	7.5	22*2	23	0-1000
QF-1000	1000	800	18.5	30*2	0-20	0-1000
QF-2000	2000	1600	30	37*2	0-20	0-1000
QF-3000	3000	2400	30	45*2	0-20	0-1000
QF-4000	4000	3200	37	55*2	0-20	0-1000
QF-5000	5000	4000	45	55*2	0-20	0-1000
1、Lift mode: hydraulic lift
2、The mixing tank with a clip, can be heated and cooled according to the need;
3、Pressure range: -0.1~0.3MPa;
4、Speed control mode: frequency converter.
