The several types of blade kneader machine

Author: source: Datetime: 2017-12-19 10:45:11

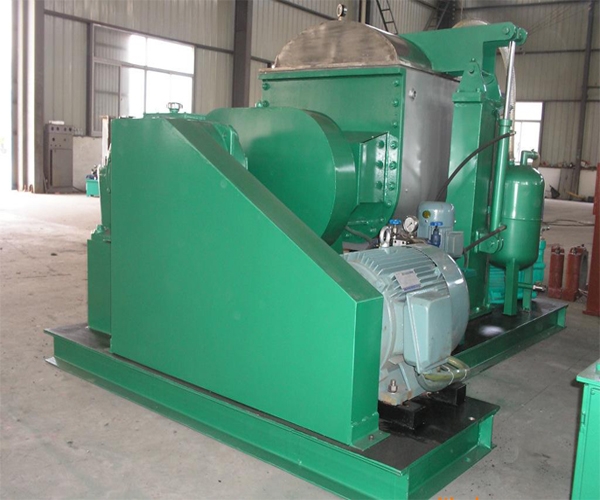

kneader machine (2)

Kneading machine mixing paddle selection according to user needs to choose from, at present, we commonly used kneader paddle there are about four types, so we can choose from the following four types of kneading machine for their own mix paddle.

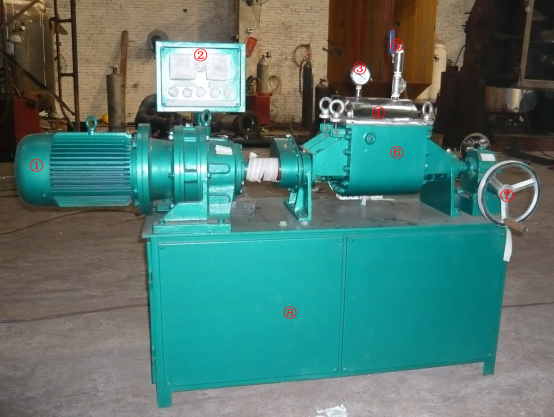

kneader machine (2)

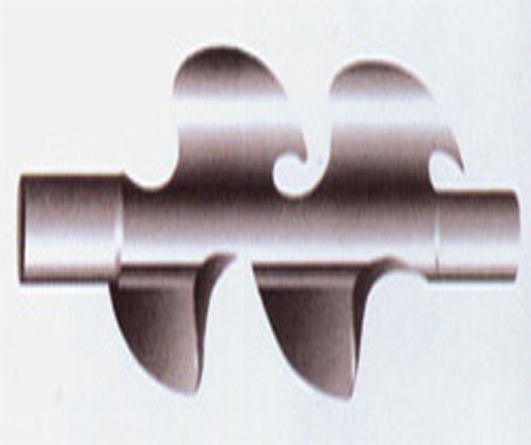

Fish tail stirring paddle

Fishtail-type paddle suitable for cellulose material kneading operation.

Fish tail stirring paddle

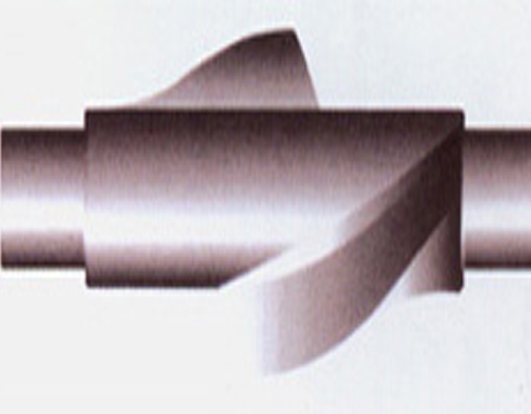

Z-type kneader stirring paddle

Z-type kneader Stirring also known as simple stirring paddle, its simple shape, used in the case of high viscosity, dispersion of resin pigment kneading operation.

Z-type kneader stirring paddle

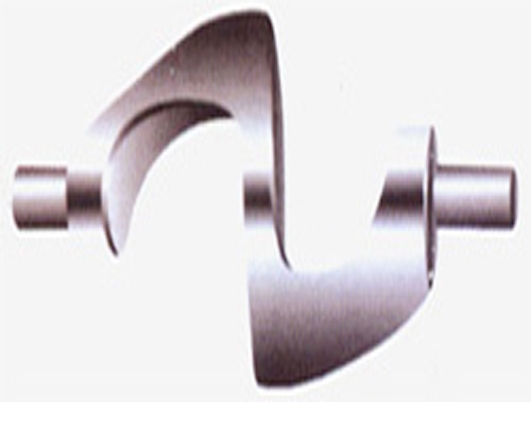

Σ-type paddle

Σ-type paddle is the most common type, which applies to the kneading and the tank must have a large movement of foreign substances kneading operation, the main role of the two paddle overlap arrangement, Intuit is squeezed dehydration operation Situation, the most suitable type Σ paddle. Applicable materials: printing ink, chocolate, carbon materials.

Σ-type paddle

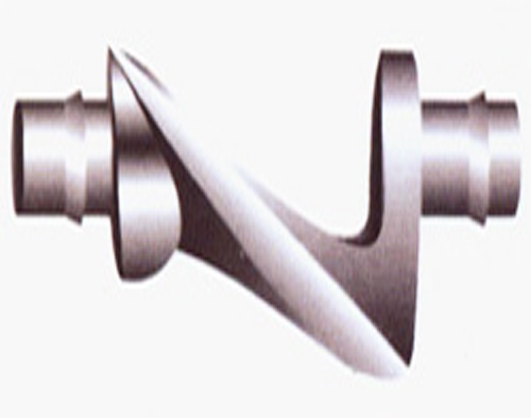

Cutting kneading machine kneading paddle

Cutting Kneader Stirring paddle is one of the toughest mixing paddles for kneading very viscous materials under high power and heavy loads. The use of cutting-type paddle, the majority of the use of two paddle tangent type arrangement. Applicable materials: rubber, iron oxide, magnetic recording materials.

Cutting kneading machine kneading paddle
